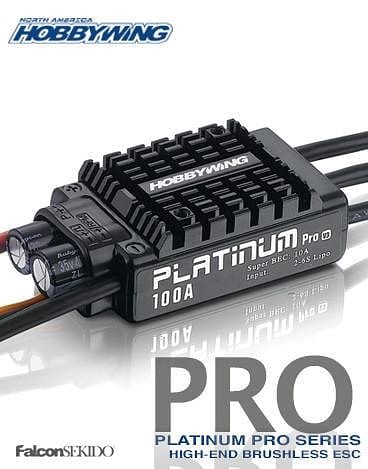

Platinum 100A V3

High-performance microprocessor with operating frequency up to 50MHz brings excellent compatibility with most motors in the market and high driving efficiency.
The maximum motor speed can reach: 210,000 RPM for 2-pole, 70,000 RPM for 6-pole and 35,000 RPM for 12-pole.
Multiple flight modes: Fixed Wing Airplane/ Heli with Governor Off/ Heli with Governor (Elf) / Heli with Governor Store.
Adjustable throttle range, compatible with various transmitters. It gives smooth, soft & linear speed adjustment and rapid throttle response.
The microprocessor is powered by a independent DC regulator resulting in better anti-interference performance, which greatly reduces the risk of losing control.
Built-in highly efficient & high-power (switch mode) BEC lets the output voltage switch between 5.2V / 6.0V / 7.4V / 8.4V. (*For the specific output voltage, please refer to the parameter list below.)
Brand new easy to operate governor program. Its excellent speed-governing effect makes big rotor blades more stable even under rapid load change.
”Restart in auto rotation" can manually interrupt the auto rotation and quickly restart the motor to avoid crashes caused by incorrect operations.
Independent output port for RPM signals.
Compatible LCD program box (*optional accessory) has a simple visual interface allowing users to set/revise all the ESC parameters easily. (For detailed information, please refer to the LCD Program Box user manual.)
The ESC firmware can be upgraded after connecting to a PC via the USB cable on the program box.
The independent port used for connecting the program box and setting parameters also functions as the output port for the running status data of the ESC. It can make real-time data monitoring and logging possible when coordinated with the data transmission module.
Multiple protection features including input voltage abnormality protection/ low-voltage cutoff protection/ and throttle signal loss protection prolong the service life of the ESC.
