35565S HS-5565MH Coreless Hi-Speed MG

This is the Hitec HS-5565MH High Voltage, High Speed Digital Servo.

FEATURES: Ideal for 1/10 scale touring cars, buggies and short course vehicles,
helicopters up to .90 size, and sport to high performance aircraft
up to 25 percent
Heavy duty metal gears and dual ball bearings
Coreless motor
Two year limited warranty through Hitec beginning at date of purchase

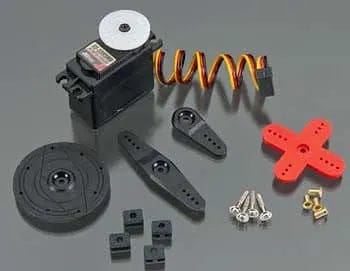

INCLUDES: HS-5565MH Servo with 0.94" (24mm) Round Servo Horn, 1.8" (45mm) Round
Servo Horn, 2.3" (59mm) Double Sided Servo Arm, 1.1" (27mm) Single
Sided Servo Arm, 1.6" (42mm) Four Point Horn, Mounting Hardware and
Instructions

SPECS: Operating Voltage: 6.0 - 7.4V DC
6.0V 7.4V
Speed: 0.11 sec/60° 0.09 sec/60°
Torque: 153 oz-in (11 kg-cm) 194 oz-in (14 kg-cm)
Size: 1.57 x 0.78 x 1.49" (39.8 x 19.8 x 37.8mm)
Weight: 2.10oz (60g)
Wire Length: 11.8" (30mm)
Wire Gauge: 25AWG
Operating Temperature Range: -4 to 140°F
Idle Current: 4mA
Stall Current: 2100mA @ 6.0V, 2700mA @ 7.2V
Potentionmeter Type: 4 slider 1M cycle
