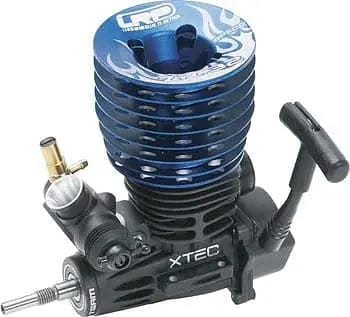

32820 Nitro Engine ZR.32 Pullstart Spec.2

 This is the LRP ZR.32X Spec. 2 Nitro Competition Engine with Pull Starter.

FEATURES: Designed for high-competition 1/8 scale buggies and truggies
          XTEC Power Carb 2 15S-2 carburetor with 9mm inserts for maximum
            power and easy adjustability
          Universal fit - fits all major .21 engine mounts
          LRP CoolDownMax cylinder head with new cooling fin arrangement for
            improved cooling
          ABC piston and liner construction "A"luminum piston fitted to a
            "B"rass cylinder liner that is "C"hrome plated
          XTEC T6 crankcase
          5+1 ports (5 transfer and 1 exhaust port)
          14mm/10.0mm bore SG shaft crankshaft triple turbo scoop
          CNC-machined, high-silicium alloy piston
          Oversized knife edged aluminium connecting rod w/double bushings
          LRP guarantees this engine to be free from defects in material and
            workmanship for 90 days (non-European countries only) from the
            original date of purchase.

INCLUDES: ZR.32X Spec. 2 Nitro Engine with LRP Standard R5 Glow Plug and
            Instructions

REQUIRES: Fuel: Car blend fuel w/25% nitro content, do not exceed 36% nitro
            content
          Air filter, glow starter, and track equipment

SPECS:    RPM: 33,000 max.
          Displacement: .32 cu in (5.24cc)
          Power: 4.34HP
          Weight: 14.8oz (420g)
          Carburetor Settings:
            Mid Range: 5.25 turns open
            Main Speed Needle: 5.5 turns open
            Idle Screw: Should be open 0.5 - 1mm, turn clockwise for higher
            idle speed, counterclockwise for lower idle speed
          Height from crankcase bottom/top of cylinder head: 4.5" (115mm)
          Height from mounting tab bottom/top of cylinder head: 3.9" (98.5mm)
          Width at Mounting Tabs: 1.7" (43.4mm)
          Distance/Center of Mounting Holes Same Side: 0.83" (21mm)
          Distance/Center of Mounting Holes Opposite Side: 1.5" (38mm)
