32802 Nitro Engine Z.28R PS Spec.3

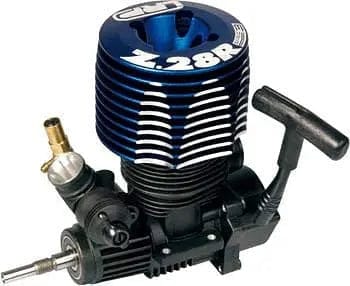

 This is the LRP ZR.28R Spec. 3 Nitro Competition Engine with Pull Starter.

   **Additional Technical Info Will Be Added When It Becomes Available.**

FEATURES: Designed for high-competition monster truck applications
          VTEC competition slide valve carburetor with 9mm venturi
          Universal fit - fits all major .21-.25 engine mounts
          LRP CoolDownMax cylinder head with new cooling fin arrangement for
            improved cooling
          ABC piston and liner construction "A"luminum piston fitted to a
            "B"rass cylinder liner that is "C"hrome plated
          XTEC T6 crankcase
          8+1 ports (8 transfer and 1 exhaust port)
          13mm crankshaft
          CNC-machined piston
          Oversized knife edged aluminium connecting rod w/double bushings
          LRP guarantees this engine to be free from defects in material and
            workmanship for 90 days (non-European countries only) from the
            original date of purchase.

INCLUDES: ZR.28R Spec. 3 Nitro Engine with Glow Plug and Instructions

REQUIRES: Fuel: Car blend fuel w/25% nitro content, do not exceed 36% nitro
            content
          Air filter, glow starter, and track equipment

SPECS:    RPM: 33,500 max.
          Displacement: .28 cu in (4.59ccm)
          Bore: 18.5mm
          Stroke: 17mm
          Max Power: 3.89HP
          Weight: 15.9oz (450g)
          Carburetor Settings:
            Mid Range: 3.75 turns open
            Main Speed Needle: 3.75 turns open
            Idle Screw: Should be open 0.5 - 1mm, turn clockwise for higher
            idle speed, counterclockwise for lower idle speed
          Height from crankcase bottom /top of cylinder head:
          Height from mounting tab bottom/top of cylinder head:
          Width at Mounting Tabs:
